HDMI TFT LCD

HDMI TFT LCD
HDMI TFT LCD
Product Code : 08
Product Description

 HDMI TFT LCD Display Panel, TFT HDMI, HDMI to TFT

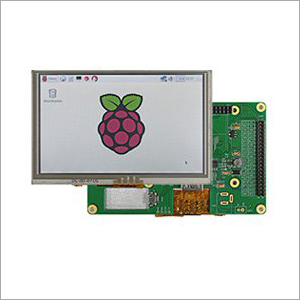

Winstar Mini / Small HDMI TFT LCD Display Panel:

Designed to be used with embedded and Raspberry Pi systems, the HDMI displays we offer are widely used today with single board computers and even laptops/desktops that support HDMI output. The display is designed to facilitate the use of Raspberry Pi computers and offers the aforementioned advantages to users:

Features:

  • Designed to make using Raspberry Pi easy
  • HDMI signal input
  • Great touch response
  • Fast response time
  • Supports Raspberry Pi GPIO
  • Supports mini-PCs, and is capable of working as a computer monitor
  • Supports RTP along with with USB interface
  • Supports PCAP option
  • Available without Touch panel option

Size: 5" Display HDMI, 7" Display HDMI, 10.1" HDMI TFT

Technical Specifications:

Model No.

Size
(inch)

Outline Dimension
(mm)

Viewing Area
(mm)

Active Area
(mm)

View Direction

Interface

Built-in Controller

Control-Board

Brightness
(cd/m²)

Frame Through Hole

Touch Screen

Temperature
(°C)

O-Film

WF50BTIFGDHTX

5

120.7×75.8

111.7×65.91

108.0×64.8

12H

HDMI

TFP401

Yes

350

No

RTP

0~70



WF50BTIFGDHGX

5

120.7×75.8

109×65.1

108×64.8

12H

HDMI

TFP401

Yes

350

No

PCAP

0~70



WF70GTIFGDHTX

7

165×100

156.6×89.1

154.08×85.92

12H

HDMI

TFP401

Yes

320

No

RTP

-20~70



WF70GTIFGDHGX

7

165×100

156.08×87.92

154.08×85.92

12H

HDMI

TFP401

Yes

350

No

PCAP

-20-70



WF70BTIFHLHTX

7

165×99.8

156.6×89.1

154.2114×85.92

12H

HDMI

TFP401

Yes

400

No

RTP

-20~70



WF70BTIFHLHGX

7

164.8×99.8

156.08×87.92

154.2114×85.92

12H

HDMI

TFP401

Yes

450

No

PCAP

-20~70



WF101FSYFPLHTX

10.1

230.56×155.01

218×137

216.96×135.6

IPS

HDMI

TFP401

Yes

750

No

RTP

-20~70



WF101FSYFPLHGX

10.1

257.96×168.6

218×137

216.96×135.6

IPS

HDMI

TFP401

Yes

900

No

PCAP

-20~70
