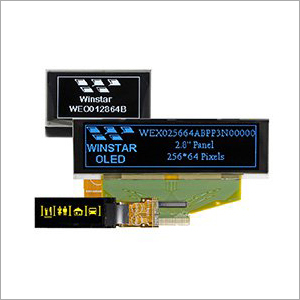

Graphic OLED Display

Graphic OLED Display
Graphic OLED Display
Product Code : 01
Product Description

Technical Specifications:

Model No.

Structure

Size
(inch)

Outline Dimension
(mm)

Viewing Area
(mm)

Active Area
(mm)

Dot Pitch
(mm)

Dot Size
(mm)

Duty

Power Supply

Interface

Built-in Controller

WEG005016A

COB

1.26

58×32

38×16

29.96×11.16

0.60×0.70

0.56×0.66

1/16

5V

6800,8080,SPI

WS0010

WEG007616A

COB

1.7

55.7×32

46×14.5

47.7×11.1

0.55×0.70

0.45×0.60

1/16

5V

6800,8080,SPI

WS0010

WEG010008A

COB

2.37

80×36

66×16

59.95×6.35

0.60×0.80

0.55×0.75

1/8

5V

6800,8080,SPI

WS0010

WEG010016A

COB

2.4

80×36

66×16

59.95×11.15

0.60×0.70

0.55×0.65

1/16

5V

6800,8080,SPI

WS0010

WEG010016B

COB

3.84

122×44

99×24

95.94×17.86

1.12×0.96

0.90×1.12

1/16

5V

6800,8080,SPI

WS0010

WEG010016C

COB

2.4

85×36

66×16

59.95×11.15

0.60×0.70

0.55×0.65

1/16

5V

6800,8080,SPI

WS0010

WEG010016D

COB

2.4

85×30

66×16

59.95×11.15

0.60×0.70

0.55×0.65

1/16

5V

6800,8080

WS0010

WEG010016E

COB

2.4

84×44

66×16

59.95×11.15

0.60×0.70

0.55×0.65

1/16

5V

6800,8080

WS0010

WEG010016F

COB

2.59

116×37

85×18.6

64.95×11.15

0.65×0.70

0.60×0.65

1/16

5V

6800,8080,SPI

WS0010

WEG010016H

COB

4.86

180×40

149×23

121.9×19.42

1.22×1.22

1.12×1.12

1/16

5V

6800,8080,SPI

WS0010

WEG010032A

COB

2.44

98×60

77×25.2

58.95×19.15

0.59×0.60

0.54×0.55

1/16

5V

6800,8080,SPI

WS0010

WEG010032B

COB

2.44

98×60

77×25.2

58.95×19.15

0.59×0.60

0.54×0.55

1/16

5V

6800,8080,SPI

WS0010

WEG020016A

COB

4.9

182×38.5

154.4×16.5

123.95×11.15

0.62×0.70

0.57×0.65

1/16

5V

6800,8080,SPI

WS0010

WEO004864A

COG

0.71

13.9×22

12.14×16.3

10.54×14.7

0.22×0.23

0.198×0.208

1/64

3V

I2C

SSD1306BZ

WEO006432A

COG

0.49

14.5×11.6

12.58×6.58

11.18×5.58

0.175×0.175

0.153×0.153

1/32

3V

I2C

SSD1306BZ




WINSTAR DISPLAY CO., LTD.
