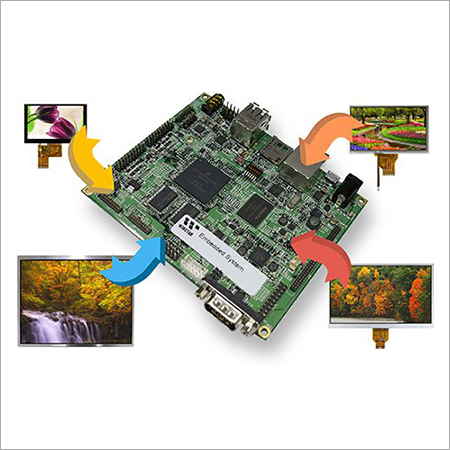

Embedded Board, Embedded System Board

Embedded Board, Embedded System Board
Embedded Board, Embedded System Board
Product Code : 01
Product Description

Embedded Motherboards, Embedded Board, Embedded System Board

Today a number of devices used for industrial applications make use of embedded systems. Winstar has been innovating and manufacturing a wide range of products that are based on embedded technology including TFT LCD modules and various motherboard solutions. Used in POS systems, security control, medical instruments, automotive control electronics and industrial automation, Winstar Embedded ARM Board series is today a popular choice in the industry. The control kernel and motherboard functions of the embedded series are performed by NXP processor iMx6 series(Dual and Quad core options). Some of the advantages offered by the motherboards are as follows:

  • ARM Base motherboard
  • NXP Cortex-A9 Dual core 1.0GHz
  • On-board DDR3 up to 2GB & 8GB eMMC NAND Flash
  • Support LVDS high solution display & RGB interface
  • Low power consumption
  • Support Android 4.2
  • Support TFT Modules from 5”~12.1”
  • Support RGB & LVDS interfaces
  • Temperature: -10 ℃~+60 ℃/ -20 ℃~+70 ℃

Technical Specifications:

Model No.

CPU

Size
(inch)

Power Supply

Interface

Touch Screen

Description

WUAAAA120V0000N0NX00

ARM

N/A

DC12V

6800

N/A

Motherboard only

WUAAAA120V050BTIGX00

ARM

5

DC12V

RGB

PCAP

Motherboard+WF50B+PCAP (w/ RGB Cable)

WUAAAA120V050BTITX00

ARM

5

DC12V

RGB

RTP

Motherboard+WF50B+RTP (w/ RGB & RTP Cable)

WUAAAA120V070BTIGX00

ARM

7

DC12V

LVDS

PCAP

Motherboard+WF70B+PCAP (w/ LVDS & PCAP Cable)

WUAAAA120V070BTITX00

ARM

7

DC12V

LVDS

RTP

Motherboard+WF70B+RTP (w / LVDS & RTP Cable)

WUAAAA120V070GTIGX00

ARM

7

DC12V

RGB

PCAP

Motherboard+WF70G+PCAP (w/ RGB Cable)

WUAAAA120V070GTITX00

ARM

7

DC12V

RGB

RTP

Motherboard+WF70G+RTP (w/ RGB & RTP Cable)

WUAAAA120V101ATIGX00

ARM

10.1

DC12V

LVDS

PCAP

Motherboard+WF101A+PCAP (w/ LVDS & PCAP Cable)

WUAAAA120V101ATITX00

ARM

10.1

DC12V

LVDS

RTP

Motherboard+WF101A+RTP (w/ LVDS & RTP Cable)

WUAAAA120V121ATITX00

ARM

12.1

DC12V

LVDS

RTP

Motherboard+WF121A+RTP (w/ LVDS & RTP Cable)
